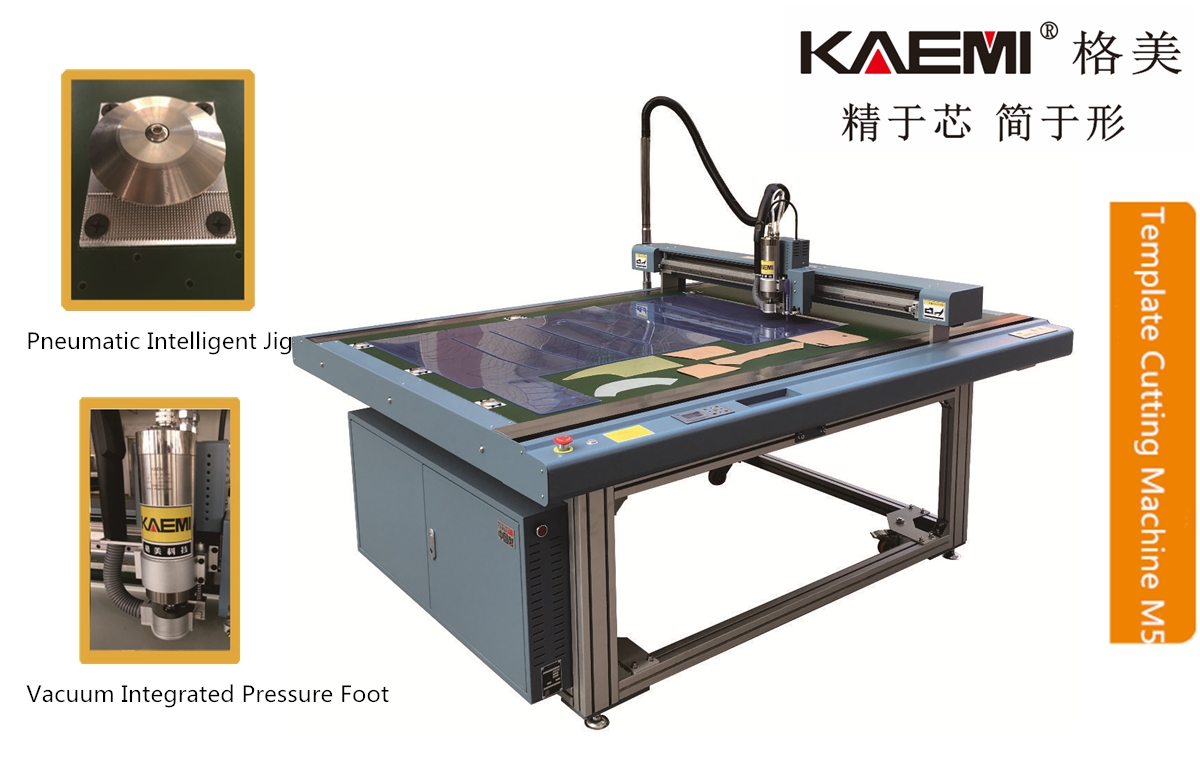

M5 Template Cutting Machine

Hit：1140 Add times：2020-04-25

Main Features

All-aluminiumn Profile Fuselage, Compact and Reasonable, More Stable

Global Initiative: Smart Accidental Power Off/Power Cut Data Recovery System(Avoid Cutting Materials Wasting)

One Key Intelligent Fixture+Multi-point Zone Adsorption System

Multi-layer at One-time Cutting

Integrated Floating Pressure Foot and Vacuum Cleaning Technology

Flexible Modification System for Cutting Starting Points and Cutting Sequence

Independent Templates Editing and Designing System

Technical Parameters

Product Model

GM-1509M5

GM-15512M5

GM-1812M5

Cutting Window(Fabric Scope)

1500*900mm

1500*1200mm

1800*1200mm

Overall Dimension(mm)

2000*1570*1100

2000*1770*1100

2300*1770*1100

Product Features

Compatible with various CAD softwares;Design while the machine is cutting

Cutting Speed

500-1800mm/s

Cutting Thickness

≤1.5mm-6.0mm

Cutting Materials

PVC, PP,POM,Acrylic, PET, Kraft, etc

Processing Methods

Mill, Cut, Drill, Plot

Cut Tools

Mill-cutter, Graver, Driller, Pen

Repeatability Precision

≤0.01mm

Software Resolution

0.025mm/0.01mm/0.1mm(Optional)

Communication Port

USB/RJ45 Ethernet

Buffer Memory Size

1M/8M/32M(Can butter more than 1 page)

File Formats

DXF/HPGL/GPGL/PLT Formats Compatible

Control Panel

9 Keys and LED Display

Driver System

Moons Motor driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam

Supply Voltage

AC 220V/110V±10%, 50Hz/3.5KW

Fuse Value

30A/35A

Working Environment

-30~55℃ or -22~131℉

Note: the above parameters are subjected to change without prior notice. If there is any doubt, please call for consultation.
