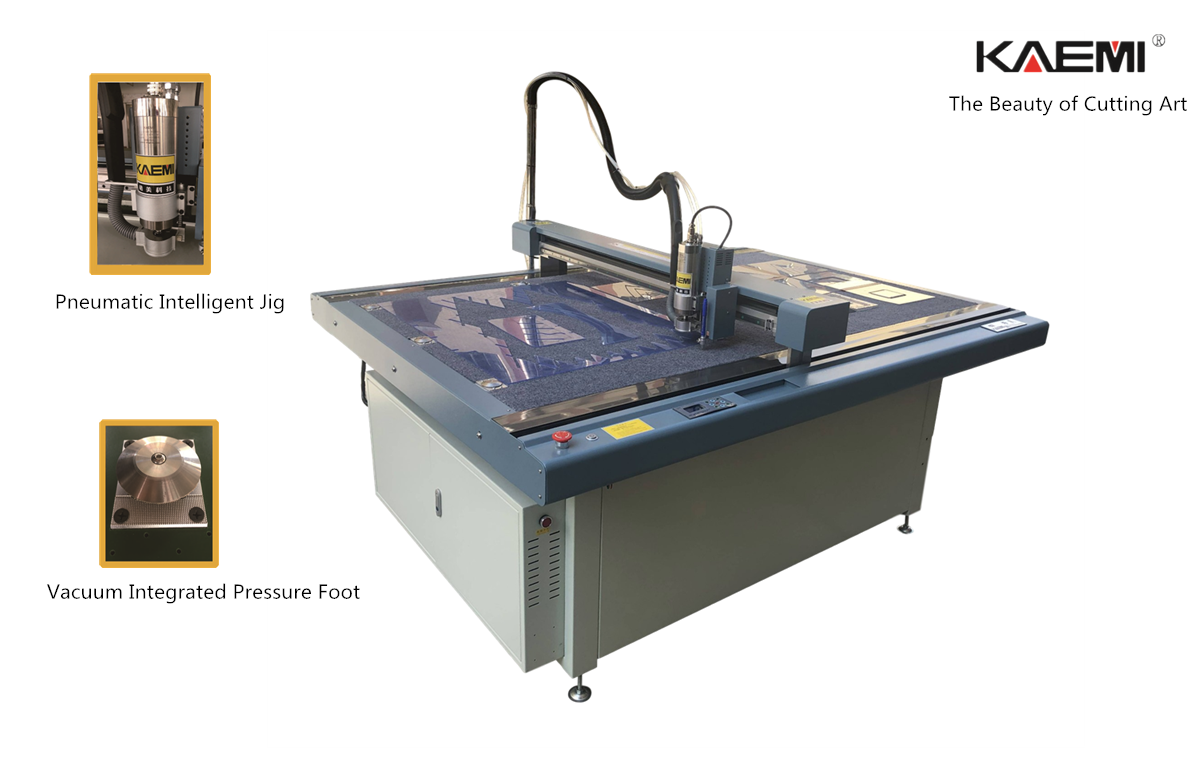

M3 Multifunctional Template Cutter

Hit：1633 Add times：2018-08-13

Main Features

Pneumatic Fixation Technology of High Efficiency Template

Integrated Floating Pressure Foot and Vacuum Cleaning Technology

Flexible Modification System for Cutting Starting Points and Cutting Sequence

Independent Templates Editing and Designing System

Technical Parameters

Model

GM-1509M3

GM-1512M3

GM1812M3

Cutting Window
(Fabric Scope)

1500*900mm

1500*1200mm

1800*1200mm

Overall Dimension(mm)

1900*1450*1100

1900*1750*1100

2200*1750*1100

Product Features

Compatible with various CAD softwares;Design while the machine is cutting

Cutting Speed

500-1500mm/s

Cutting Thickness

≤1.5mm-6.0mm

Cutting Materials

PVC, PP,POM,Acrylic, PET, Kraft, etc

Processing Methods

Mill, Cut, Drill, Plot

Cut Tools

Mill-cutter, Graver, Driller, Pen

Repeatability Precision

≤0.01mm

Software Resolution

0.025mm/0.01mm/0.1mm(Optional)

Communication Port

USB/RJ45 Ethernet

Buffer Memory Size

1M/8M/32M(Can butter more than 1 page)

File Formats

DXF/HPGL/GPGL/PLT Formats Compatible

Control Panel

9 Keys and LED Display

Driver System

Moons Motor Driver; High-accuracy Lead Rail, Double Lead Rail on crossbeam

Supply Voltage

AC 220V/110V±10%, 50Hz/3.5KW

Fuse Value

30A/35A

Working Environment

-30~55℃ or -22~131℉

Materials Fasten

Vacuum/Clamping

Mill Motor

800W/1500W, Water-cooling/Air-cooling, 5000~240000 RPM Inverter

Waste Elimination

220V/1.4KW, Industrial 15L Vacuum Cleaner

Note: the above parameters are subjected to change without prior notice. If there is any doubt, please call for consultation.
