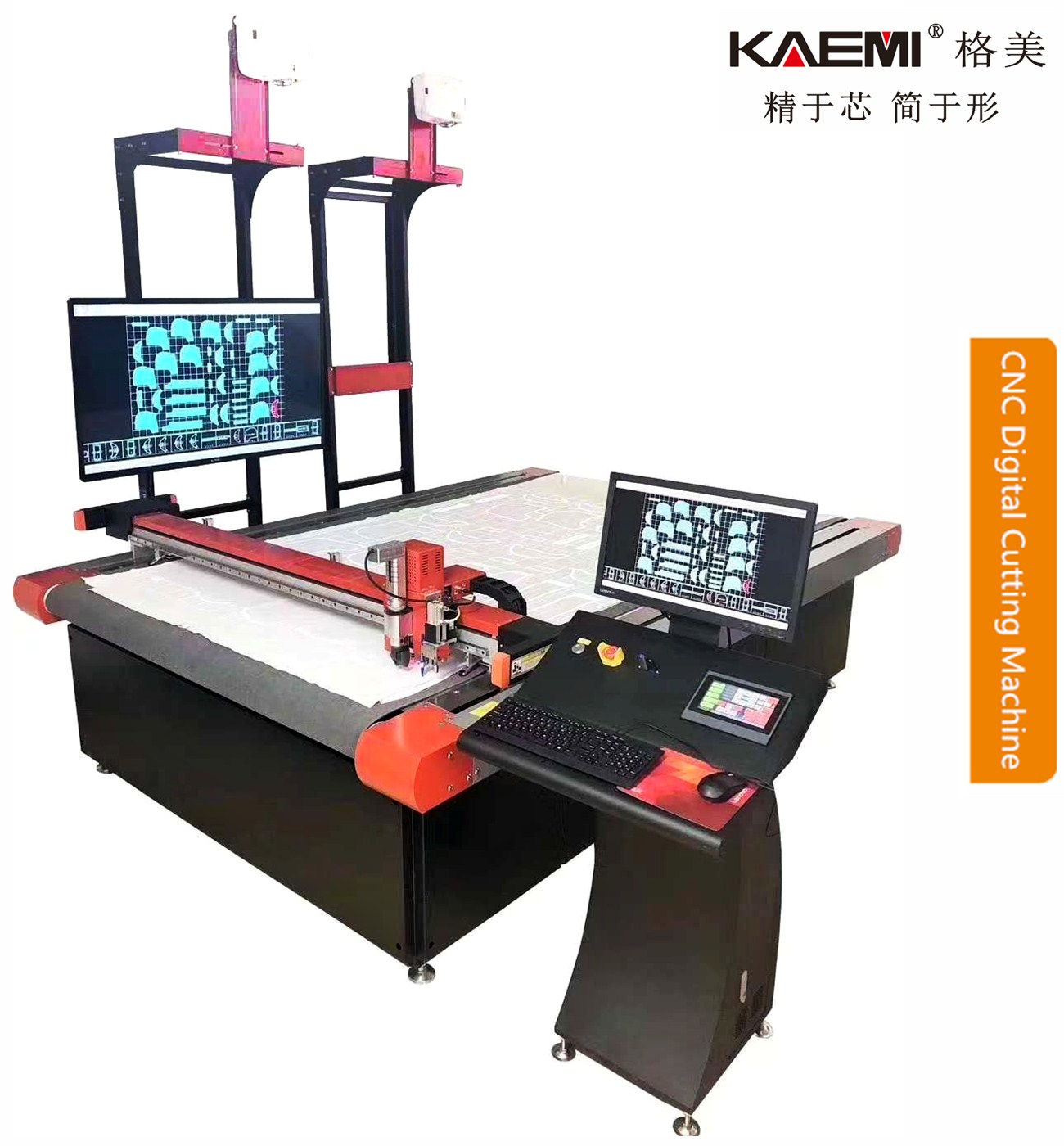

DK Series

Hit：1816 Add times：2018-08-13

Main Features

Continuous Feeding System

Independent Operator-Touch Screen Control

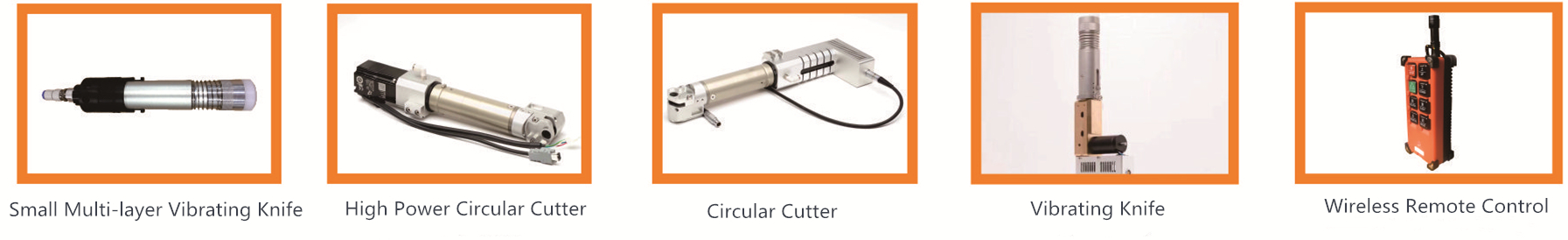

Various Scissors/Punching Devices

Digital Image Cutting Positioning System

Mordular Partition Table and All-alumnium Profile Fuselage

Imported Servo Motor/Drive System

Remote Wireless Remote Control Operating System

Intelligent Suction Zoning System

Technical Parameters

Model

GM-2516DK5

GM-2518DK5

GM-3016DK5

Cutting Window

(Fabric Scope)

2500*1600mm

2500*1800mm

3000*1600mm

Overall Dimension(mm)

3420*2350*1220

3420*2550*1220

3920*2350*1220

Materials Fasten

Vacuum Adsorption

Max Cutting Thickness

≤35mm

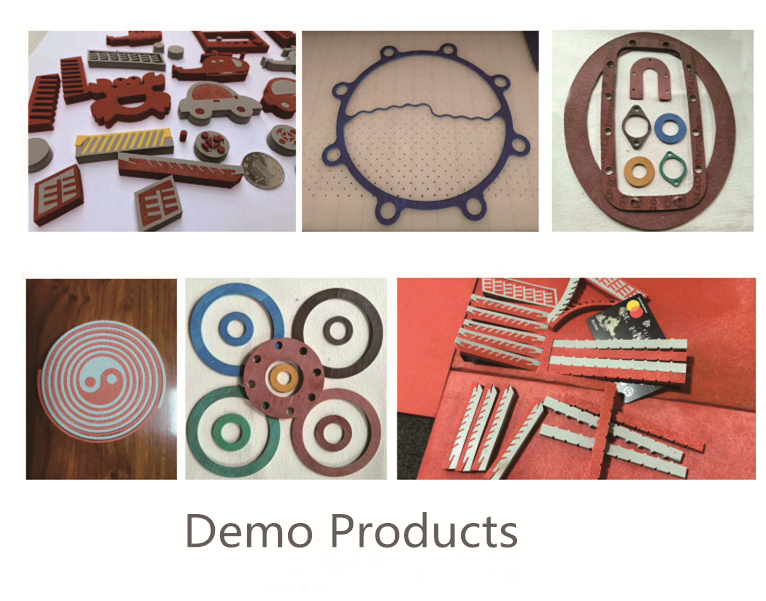

Cutting Materials

Flexible Materials(Knitted Fabrics, PU, Leather, Sponge, Hard Materials, Cardboard, PVC Board,Various Fiber Composite Materials, etc

Cutting Speed

100mm~1200mm/s (Speed Varies According to Cutting Materials)

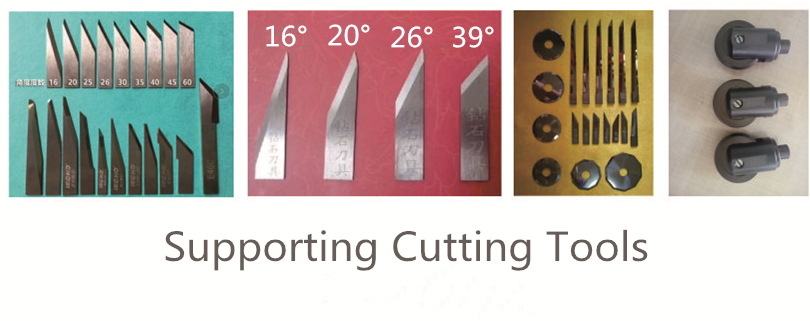

Pen Type/Knife Type

Milling Cutter, Nicking Tool, Drill, Pen

Repeatability Precision

≤0.01mm

Communication Port

USB/RJ45 Ethernet, Shared Folder Print in LAN

Buffer Memory Size

1M/8M/32M(Can butter more than 1 page)

File Formats

DXF/HPGL/HPG/PLT Formats Compatible

Control Panel

Color Multilingual Touch Screen

Feeding Way

Roller and Crawler Feed Automatically

Supply Voltage

AC 220V/380V±10%, 50Hz

Fuse Value

30A/35A

Working Environment

Temperature: 0~40℃ or 32~104℉; Humidity: 20%--80% RH, No Condensation

Location Mode

Cross Laser, CCD Positioning

Power Consumption

The Control Part is 2.2KW/h, and the Vacuum Part is 2.2-7.5KW/h

Application Areas

Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Advertising, Box Cutting, etc

Note: the above parameters are subjected to change without prior notice. If there is any doubt, please call for consultation.
