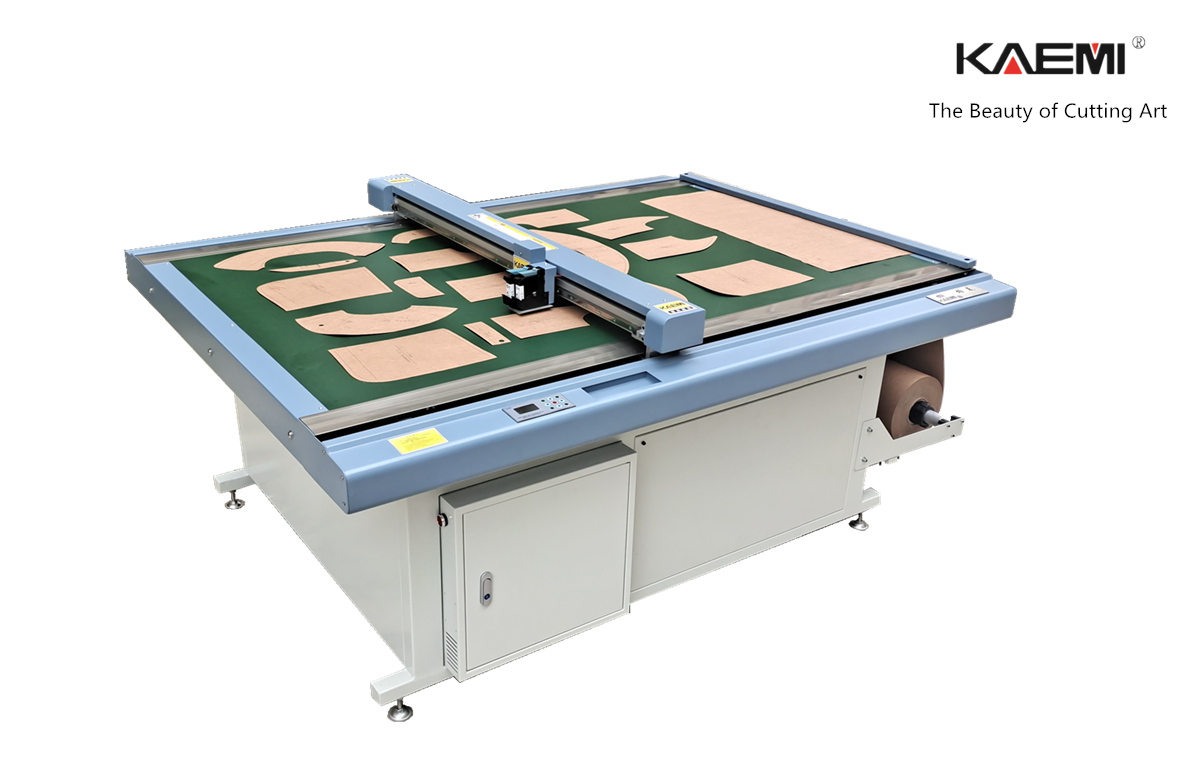

P3 Multifunctional Inkjet Cutter

Hit：2048 Add times：2018-08-13

Main Features

Unique Inkjet and Cutting Double Track Tracking System

Unique Paper Card Abnormal Monitoring System

Cutting Starting Points and Cutting Sequence Display System

Automatic Paging System

Fault Detection System for Whole Machine

Technical Parameters

Model

GM-1209P3

GM-1509P3

GM-1510P3

GM-1512P3

Cutting Window

(Fabric Scope)

1200*900mm

1500*900mm

1500*1000mm

1500*1200mm

Overall Dimension(mm)

1600*1280*800

1900*1280*800

1900*1455*800

1900*1700*800

Max Speed

1200mm/s

Materials Fasten

Vacuum Adsorption

Maximum Cutting Thickness

3mm(Maximum Cutting Thickness Varies from Materials to Materials)

Cutting Materials

White Paper, Kraft, Plastic Board, Fiberboard, etc

Printing Speed

60㎡/h

Plot/Cut Tool

HP45 Ink Box,Tungsten Steel Blade

Precision

≤0.01mm

Communication Port

USB/RJ45 Ethernet; Shared Folder Print in LAN

File Formats

HPGL(Compatible with Domestic and Interntional CAD Online)

Control Panel

9 Keys and LED Display(Chinese and English Switch)

Motor/Driver

High Performance 3 Phrase Step-motor

Supply Voltage

AC 220V/110V±10%, 50Hz

Working Environment01

Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH

Paper Thickness

150g-500g/㎡

Application Areas

Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

Note: the above parameters are subjected to change without prior notice. If there is any doubt, please call for consultation.
