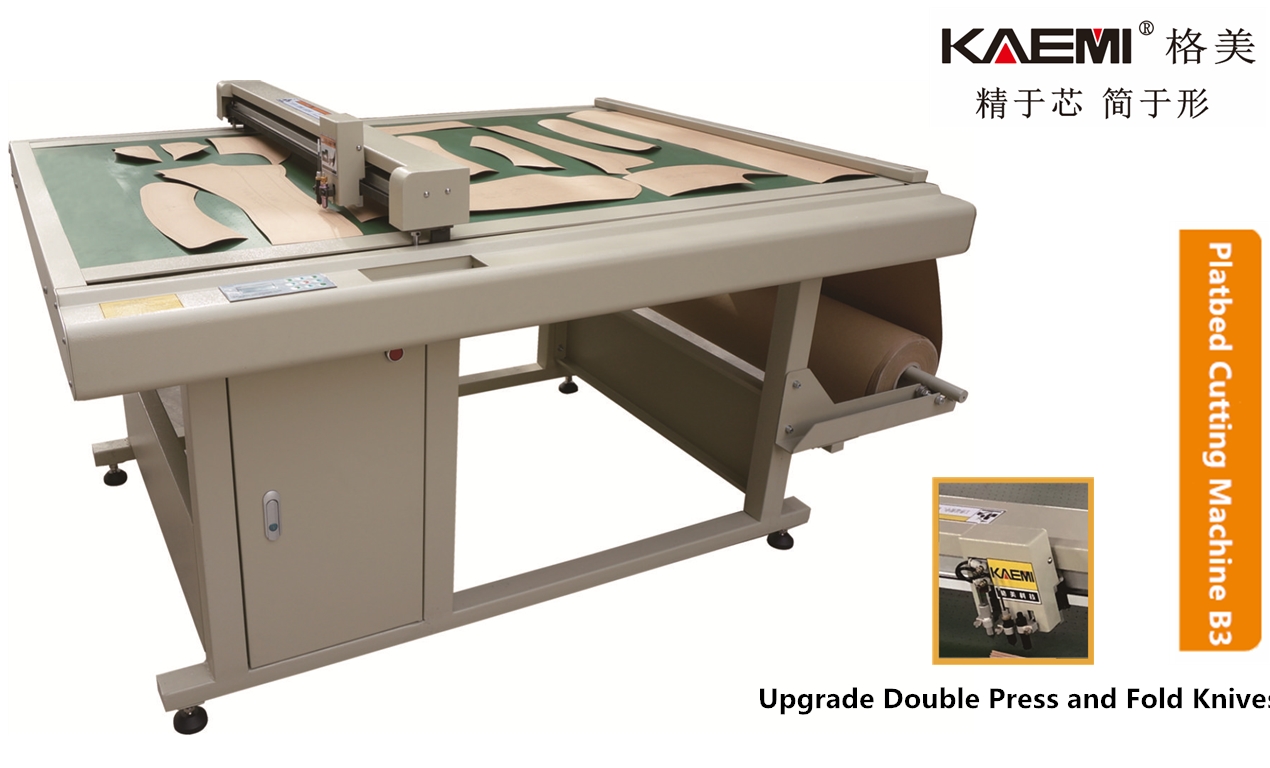

B3 Flatbed Cutting Machine

Hit：1939 Add times：2018-08-13

Main Features

New Frame Design Ensures Machine Stablility When Runs at High Speed

Optimized Circuit Layout; More Compact Electrical; Better Heat Dissipation; More Reasonable

Cutting Starting Points and Cutting Sequence Display System

System Updated to the Latest Version. Optimized Dashed Lines, Arcs, Machines Runs More Smoothly

Unique Error Data Identification Function

Technical Parameters

Model

GM-1209B3

GM-1509P3

GM-1510B3

GM-1512B3

Cutting Window

(Fabric Scope)

1200*900mm

1500*900mm

1500*1000mm

1500*1200mm

Overall Dimension(mm)

1600*1280*800

1900*1280*800

1900*1380*800

1900*1580*800

Max Speed

1200mm/s

Materials Fasten

Vacuum Adsorption

Maximum Cutting Thickness

2mm

Cutting Materials

White Paper, Kraft, Plastic Board, Fiberboard, etc

Material/Paper Loading Method

Manual/Automatic

Pen/Knife Type

Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade

Precision

≤0.01mm

Communication Port

USB/RJ45 Ethernet; Shared Folder Print in LAN

File Formats

HPGL(Compatible with Domestic and Interntional CAD Online)

Control Panel

9 Keys and LED Display(Chinese and English Switch)

Motor/Driver

High Performance 3 Phrase Step-motor

Supply Voltage

AC 220V/110V±10%, 50Hz

Working Environment

Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH

Paper Thickness

150g-500g/㎡

Application Areas

Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc

Note: the above parameters are subjected to change without prior notice. If there is any doubt, please call for consultation.
